Cross Stacked Brisbane
Brisbane
Dan Burnett
DESIGNER: Dan Burnett, Future City Architects BUILDER: Blok Modular BUILD DATE: 2014
LOCATION: Oxley, Brisbane, Queensland PHOTO CREDITS: Blok Modular RATING: 4 Stars

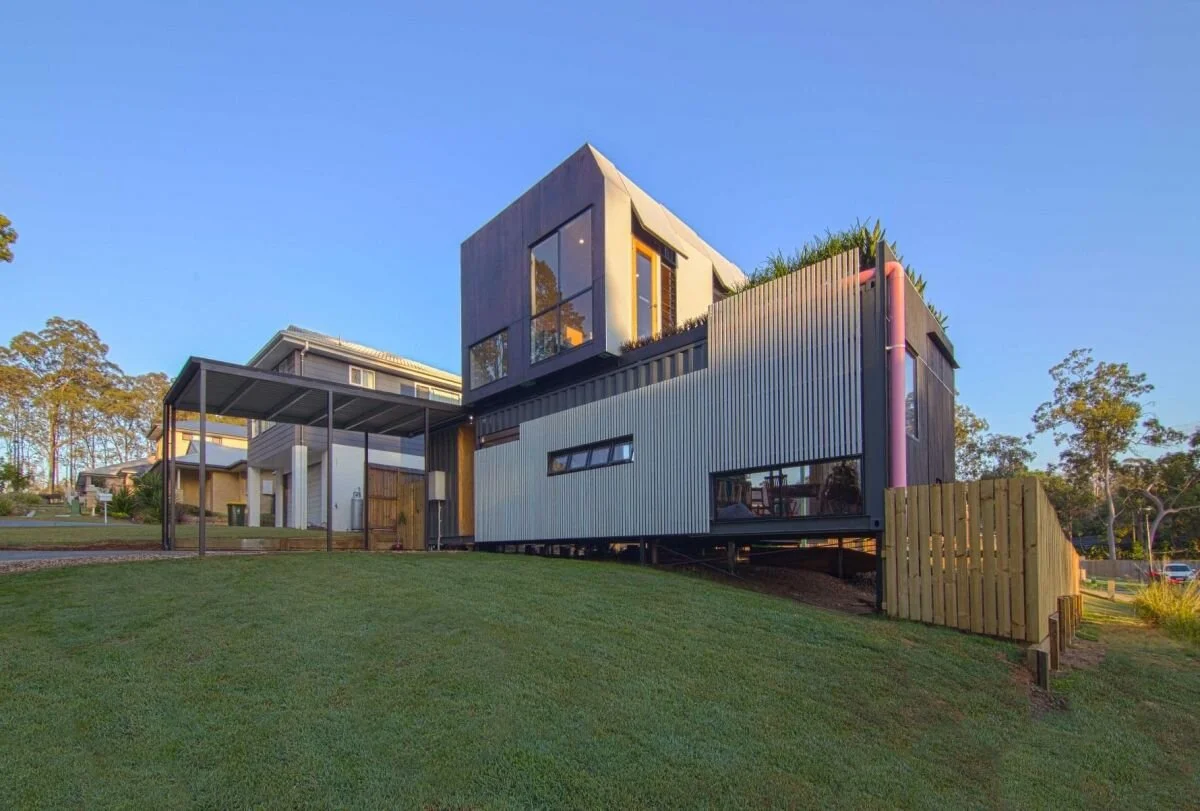

This family home in Oxley, in Brisbane's south-west, is built from four 40ft high cube shipping containers, cross-stacked so the top pair sits at right angles over the bottom pair and cantilevers out past it. Designed by architect Dan Burnett and built for the Archer family, it packs in three bedrooms, two bathrooms and a study.

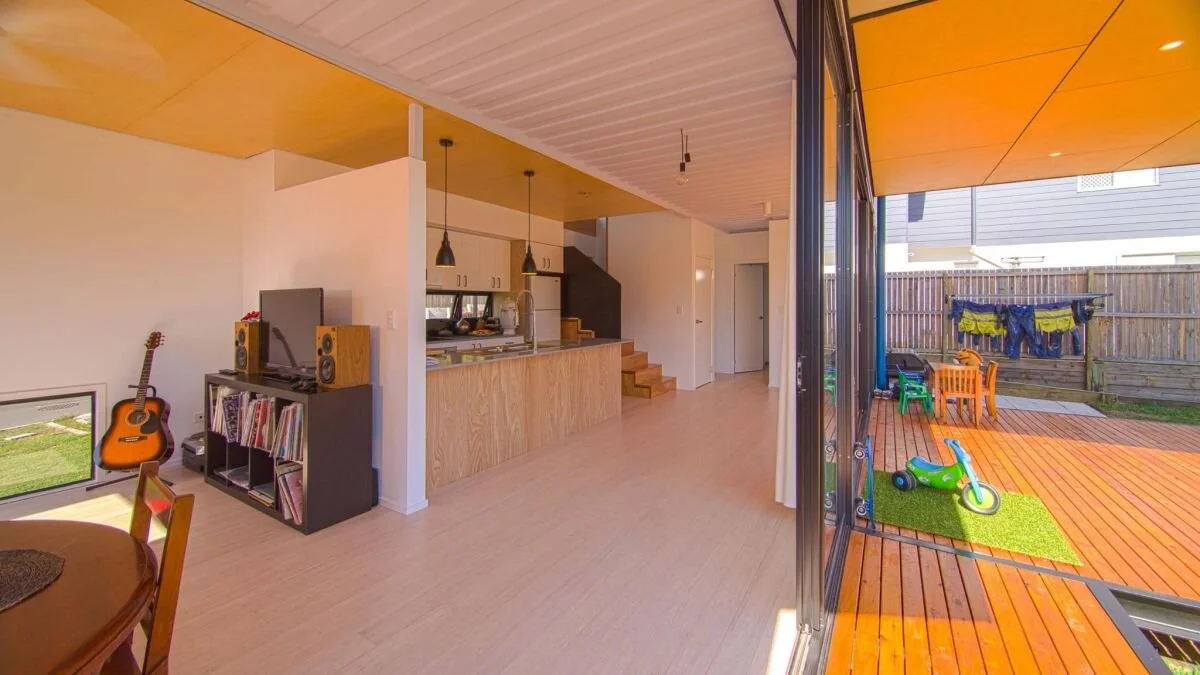

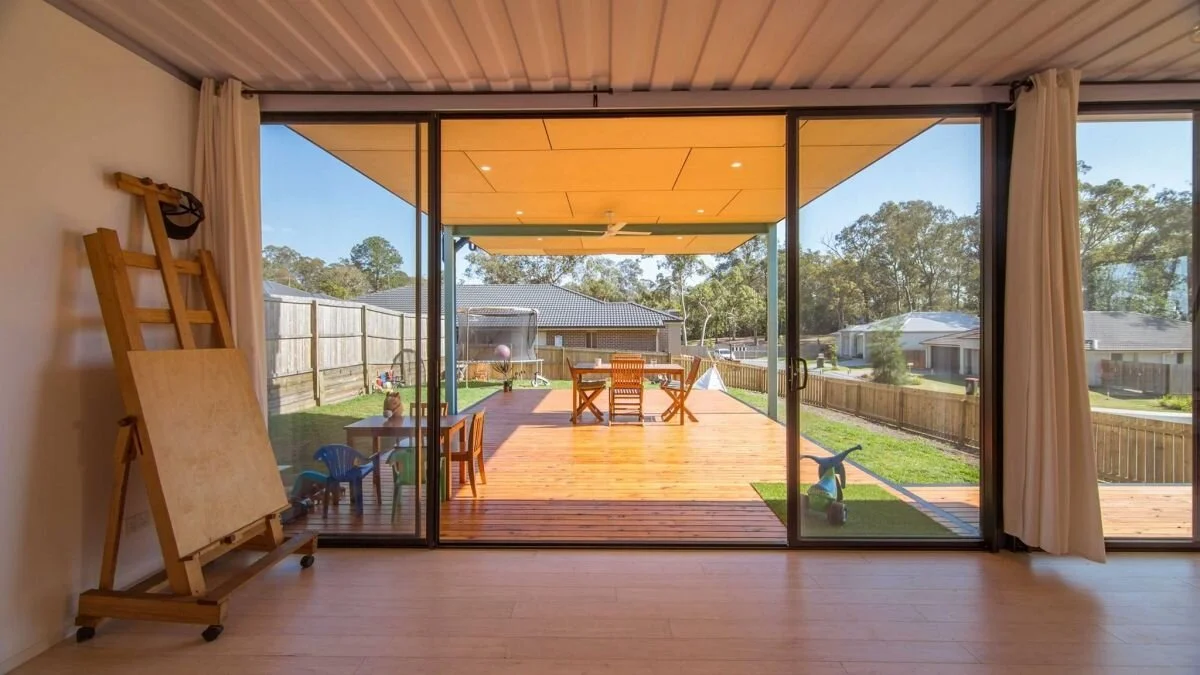

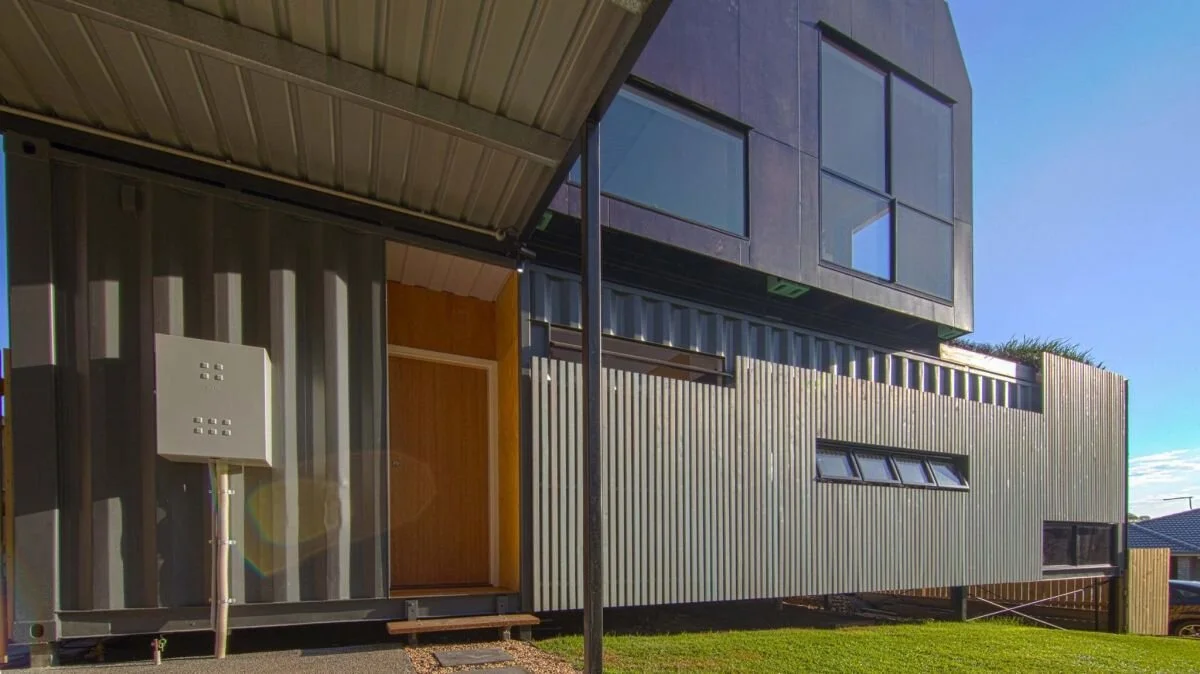

A covered walkway leads to the front door. Downstairs, the two ground-floor containers hold an open-plan lounge, dining area and a single-wall kitchen beside the stair, with floor-to-ceiling glass doors opening onto a big entertaining deck. That deck sits right under the cantilevered containers above, so it's sheltered from sun and rain and perfect for long dinners outside. Upstairs are the bedrooms, a balcony and a roof garden.
Build Method

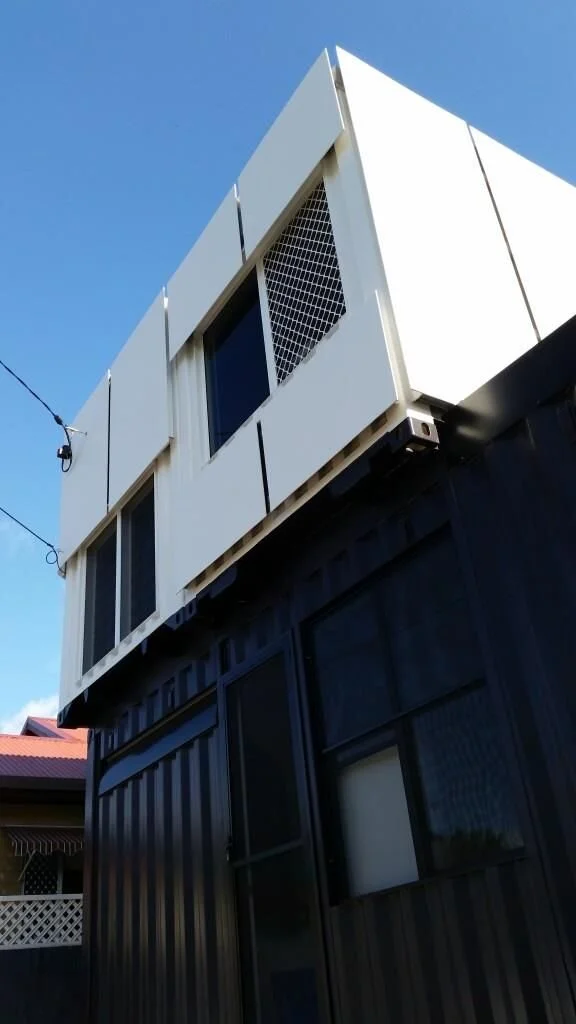

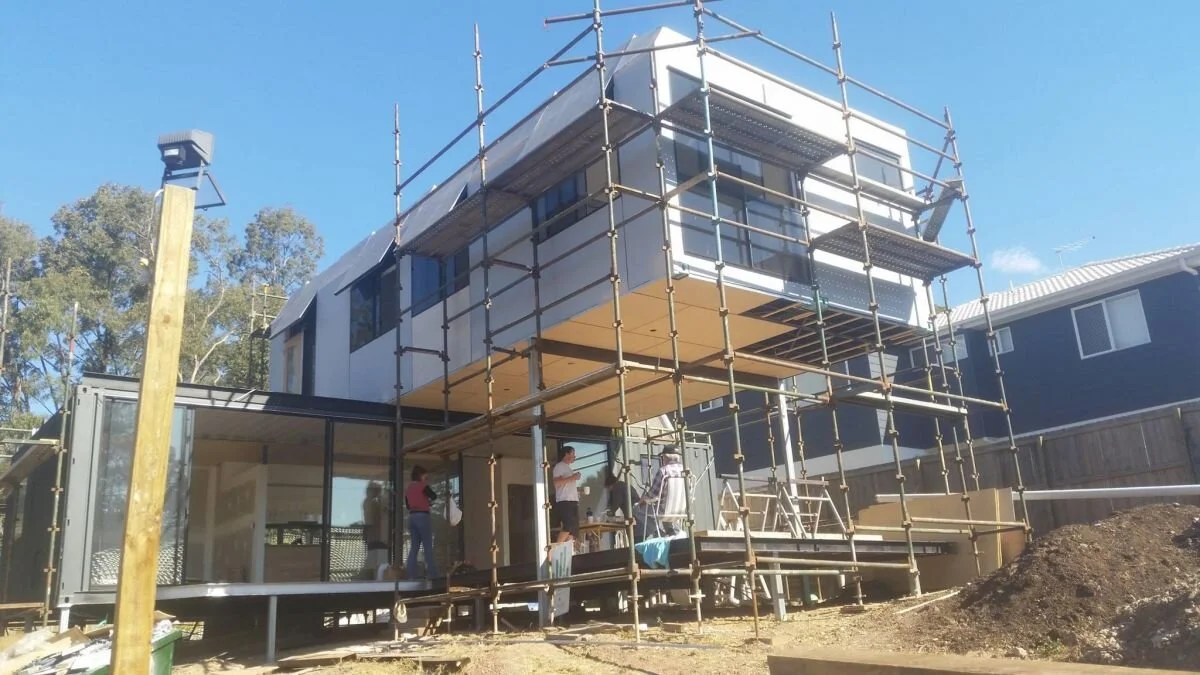

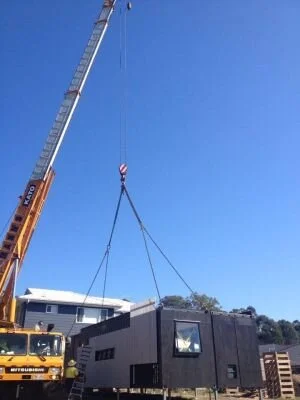

The containers were cut, reinforced and fitted out off site, then craned into position, with the modules assembled on site in about a day. Cross-stacking is what makes it work: turning the upper containers 90 degrees creates the overhangs and the covered deck without extra structure, and gives every level a different outlook.

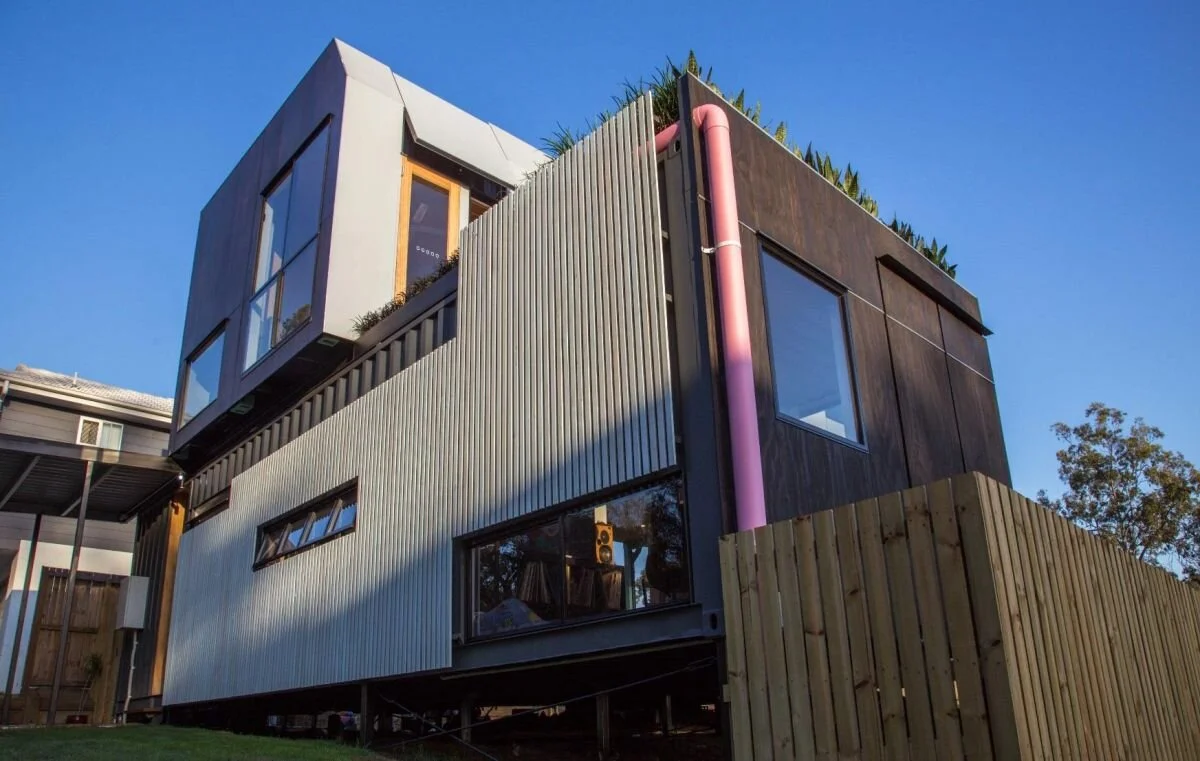

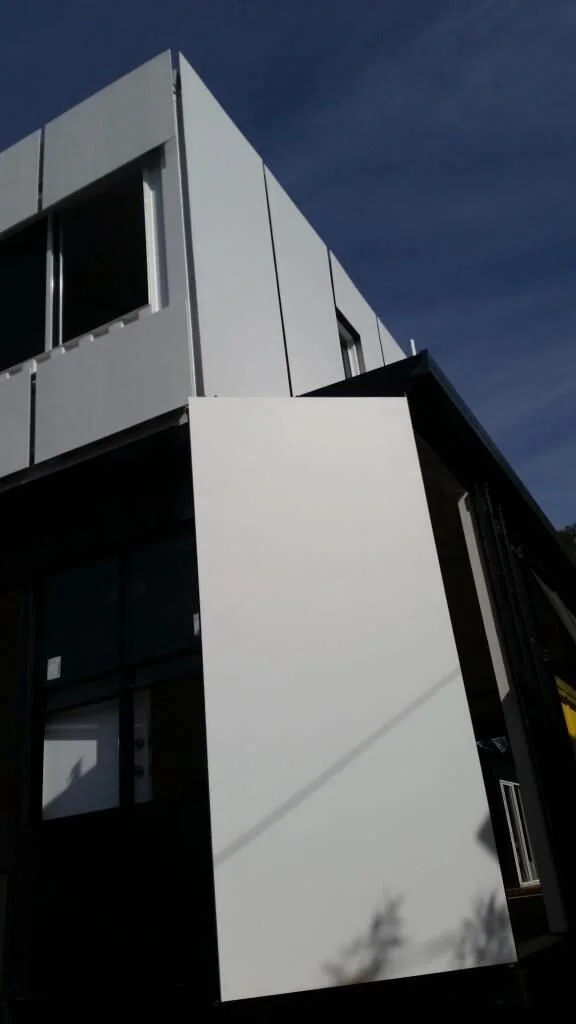

Inside, the steel boxes disappear behind natural timber veneer walls and ceilings and solid bamboo floors, while outside some of the container corrugations are left exposed next to new cladding. Dan has said container homes can be one of the cheapest ways to build, and this project was a big part of showing Queensland families what that can look like.
Interbode Thoughts
We love this one because it's so close to home and so smart with so little. Four containers, one clever twist, and you get a covered outdoor room that most standard houses would have to build separately. It's exactly the kind of family home we think containers do best in Australia. If you like the stacked, cantilevered look, have a look at our STACK2 and HELI models. Great job Dan and the Archer family!
Cross Stacked Brisbane Designs
Build or Buy
Guides

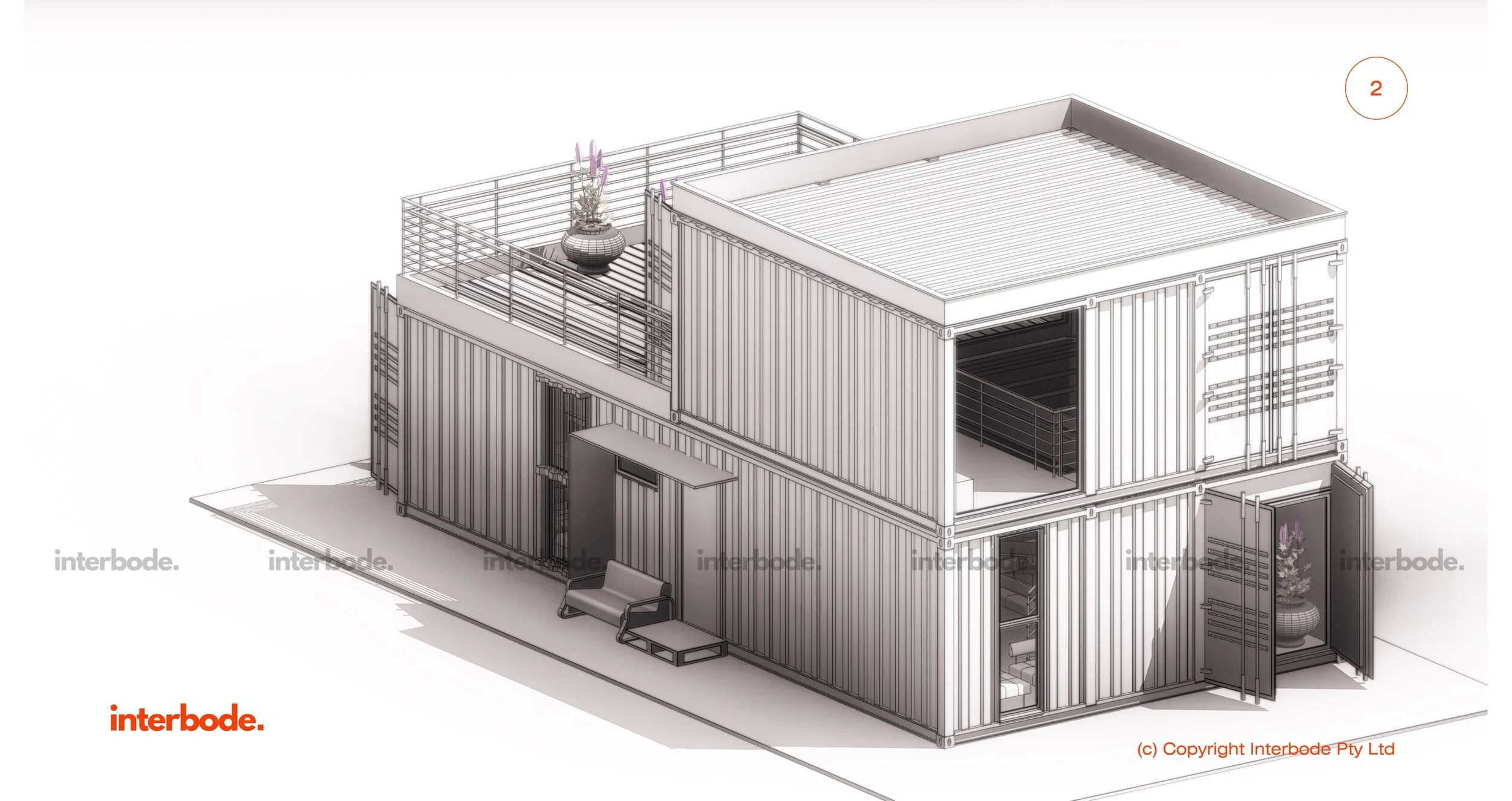

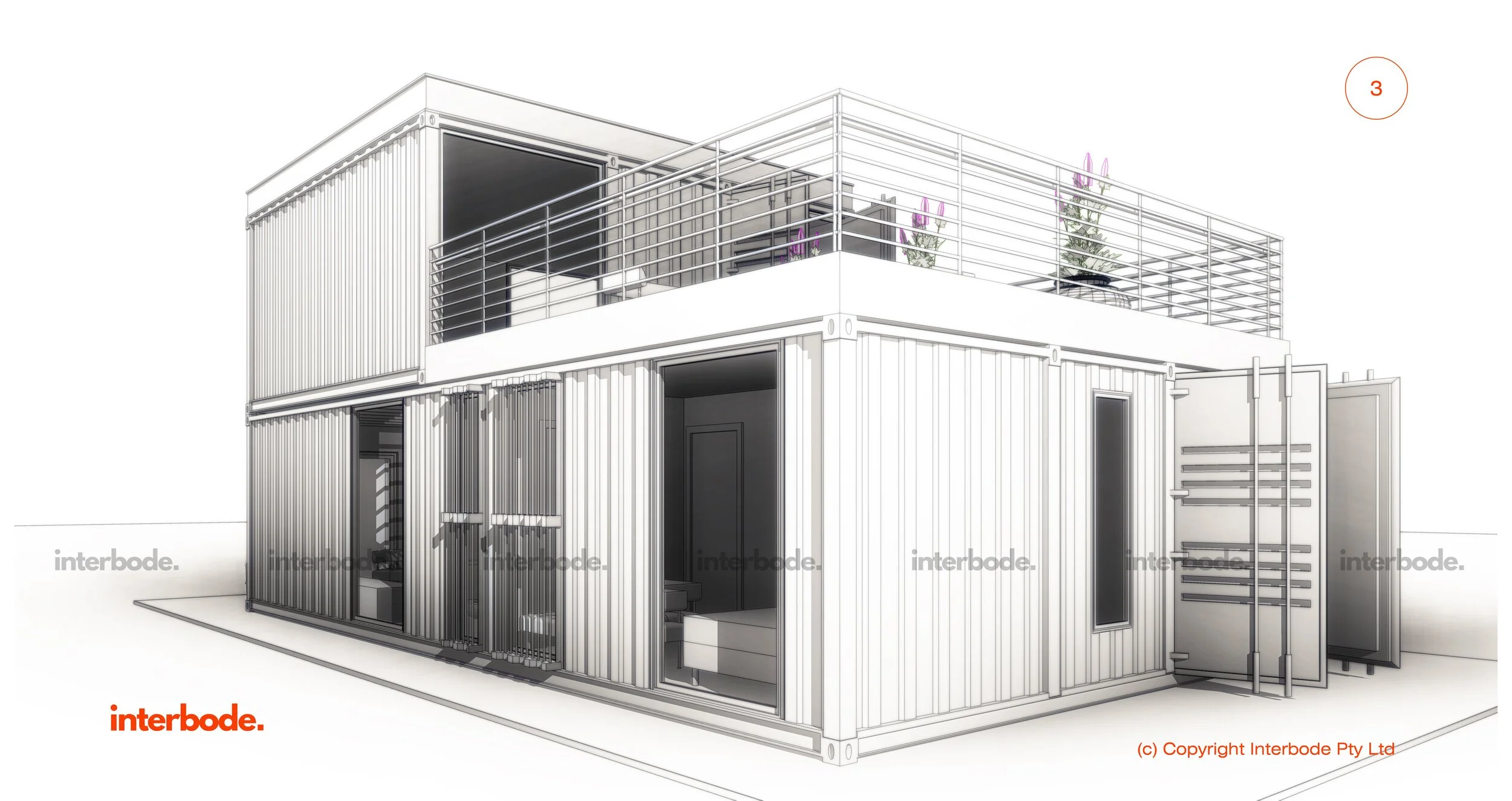

NEST Design & Build Plans
2 BED | 1 KIT | 1 BATH - Dimensions: W x D x H
NEST is a double unit 2X 20M (40ft) High Cube Shipping container design suitable for a small house/ holiday apartment use complete with regular kitchen and bathroom in both Grid and Off Grid configurations and with 1 Solar roof option.
Download detailed plans for NEST which include the following drawings in A3:
DRAWINGS SCHEDULES
PROJECT NOTES
FLOOR PLAN
REFLECTED CEILING
ROOF PLAN

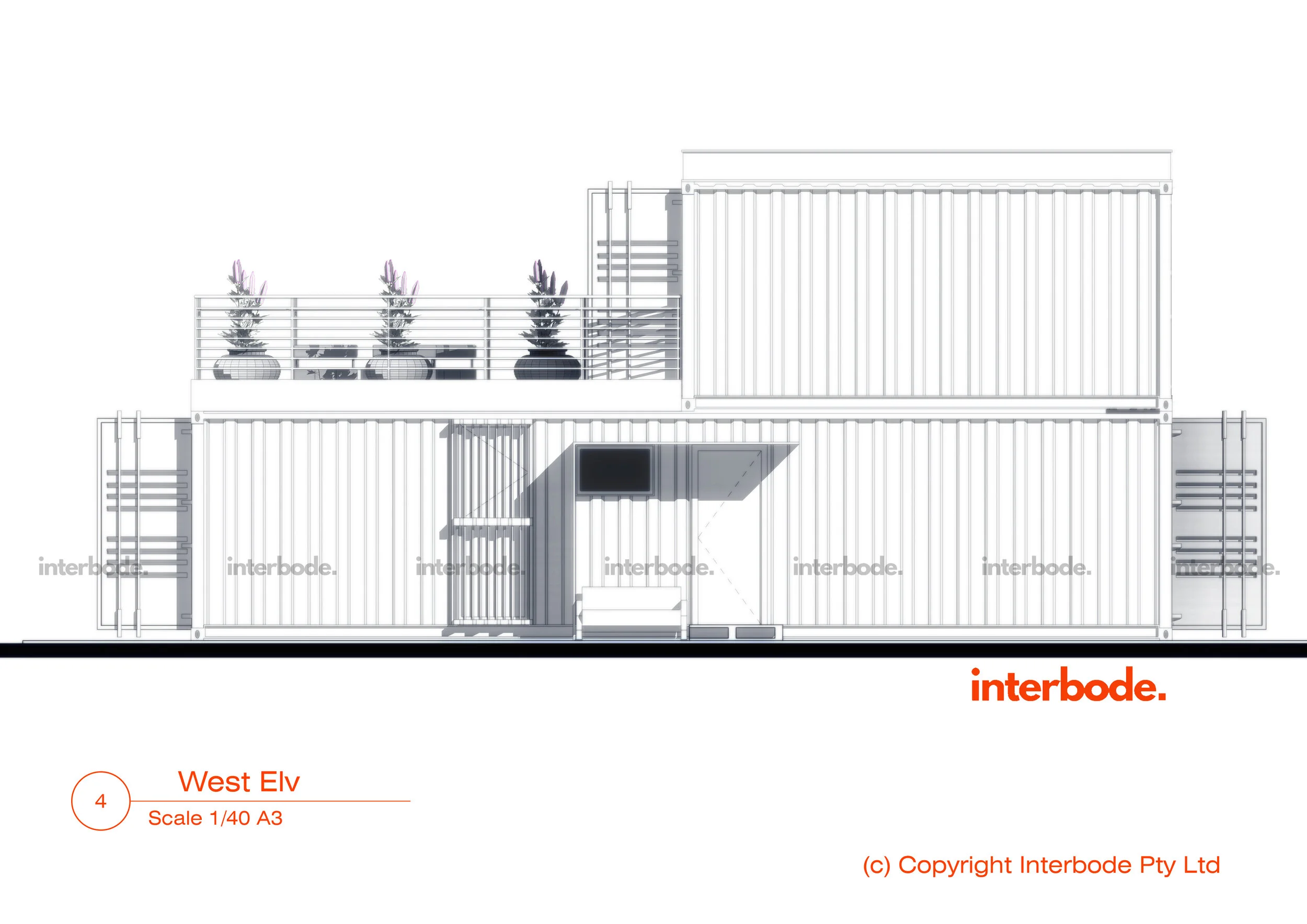

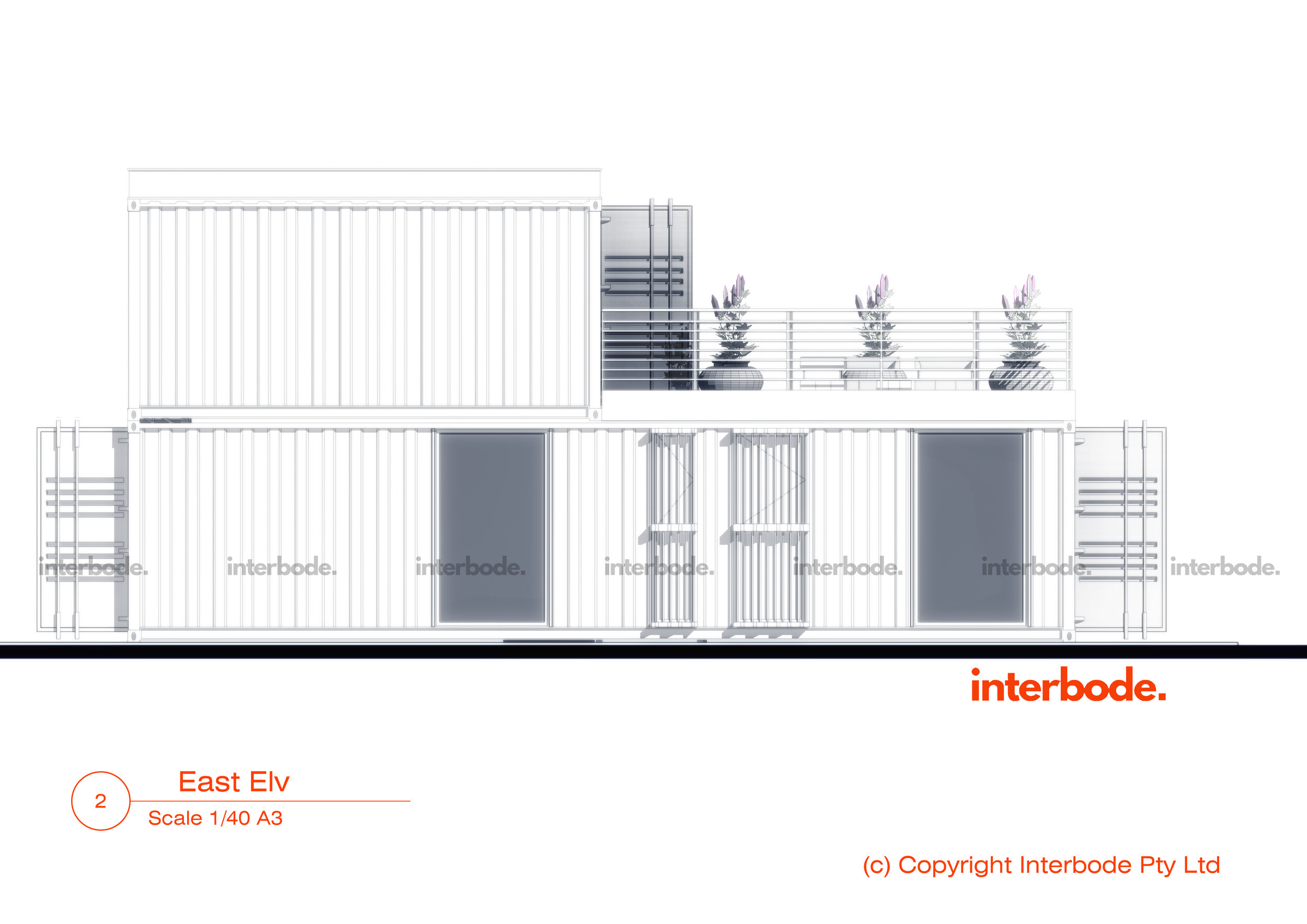

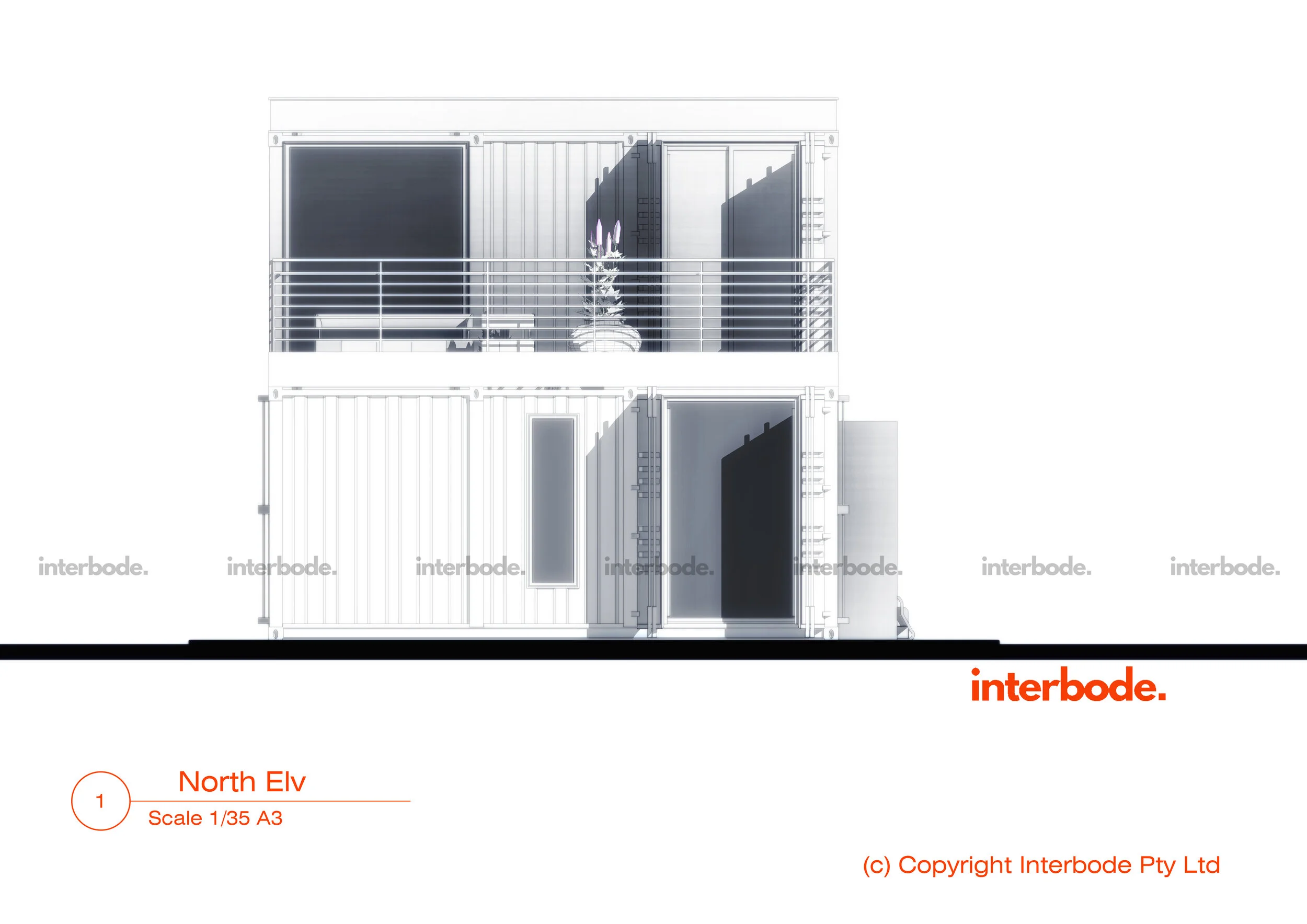

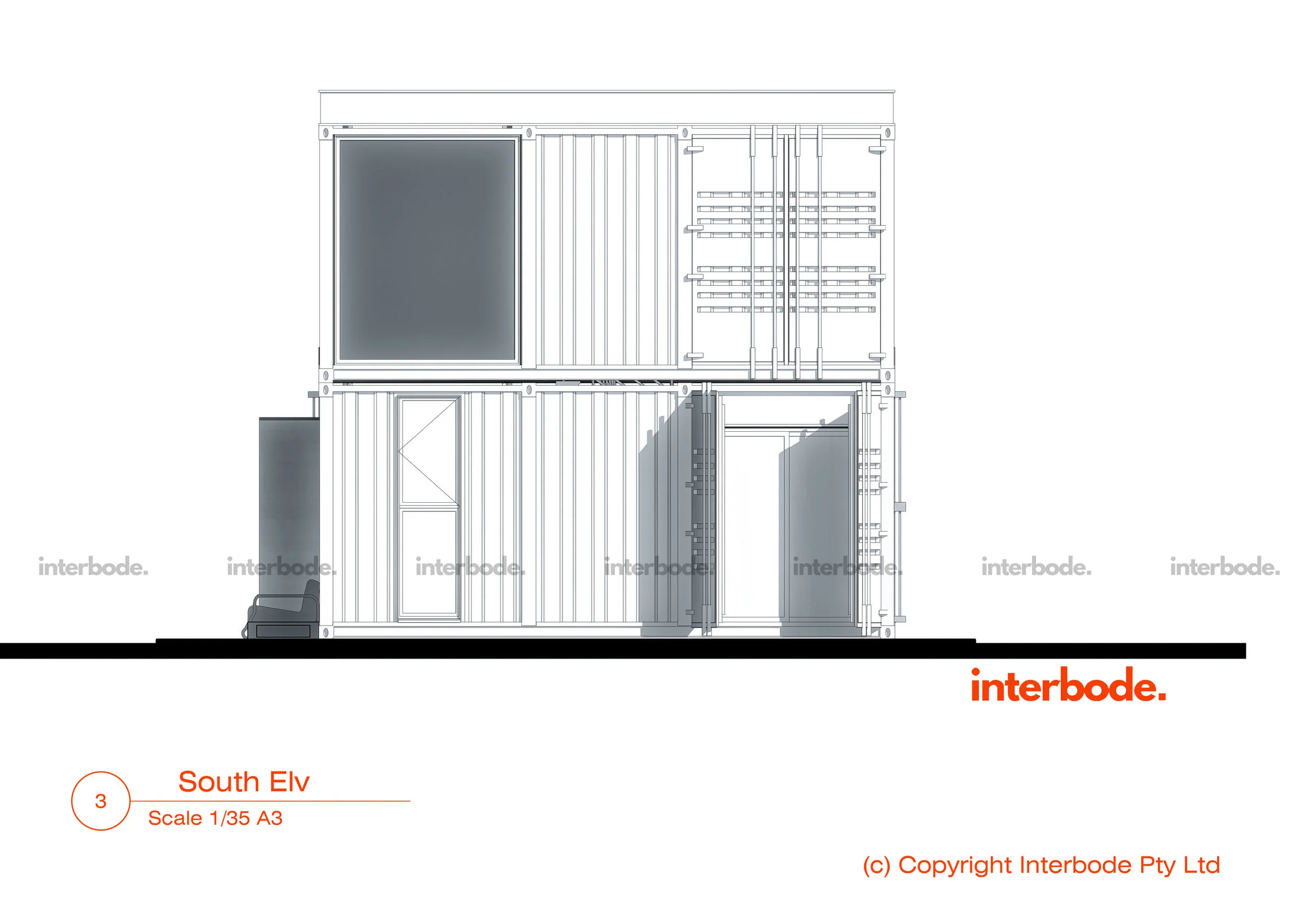

ELEVATIONS

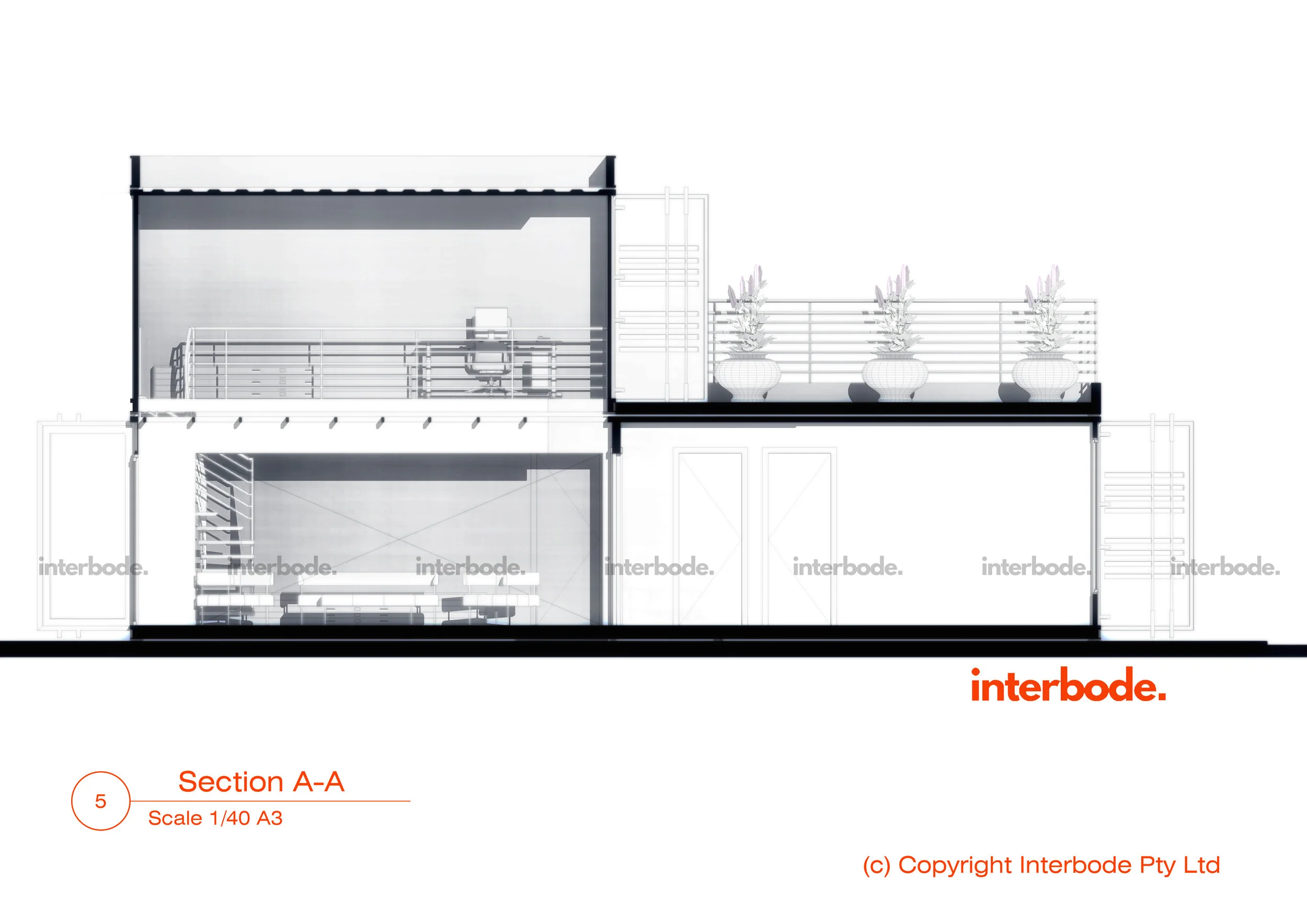

SECTIONS
INTERNAL ELEVATIONS
TYPICAL DETAILS
KITCHEN DRAWINGS
JOINERY DRAWINGS
BATHROOM DRAWINGS
ASSEMBLY DRAWINGS
WINDOW SCHEDULES
LIGHTING PLAN
POWER & SWITCHES PLAN
ELECTRICAL SCHEMATICS
FIXTURES & FINISHES SCHEDULE
Bespoke plans or amendments are also available from Interbode’s Design Studio. Contact Us: https://www.interbode.com
Notes:
Whilst detailed, this document is not for construction and is not intended to be compliant with all council or building regulations in your country or state. Prior to commencing build you should engage a suitable architect/drafts person and a qualified engineer.
All plans are copyright of Interbode Pty Ltd and Boxwood Construction Pty Ltd.
